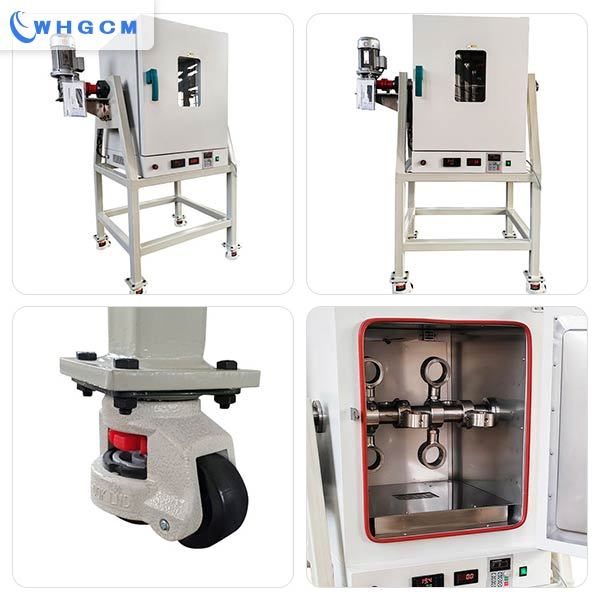

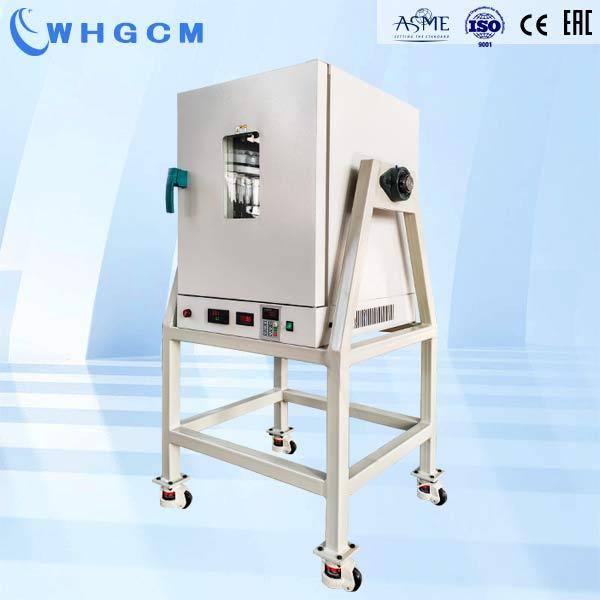

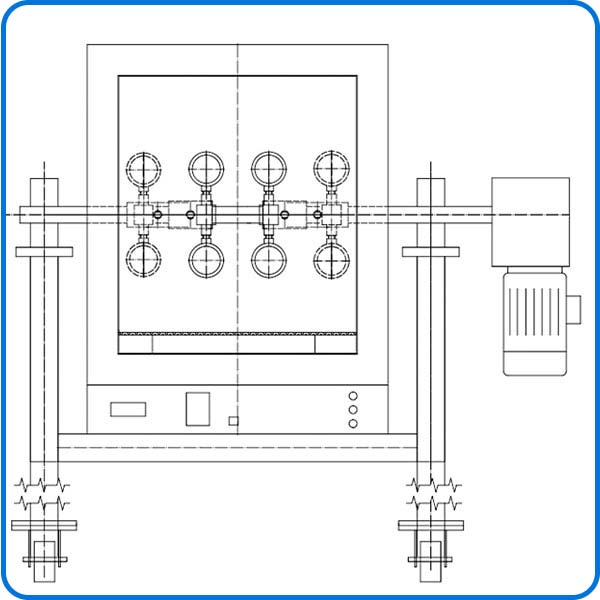

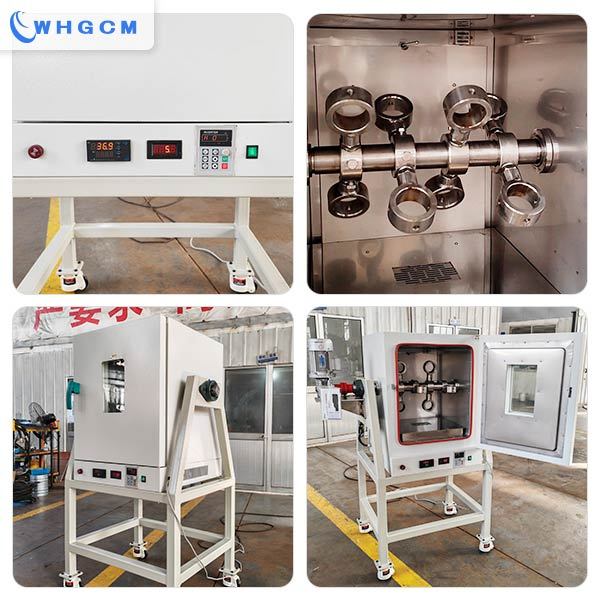

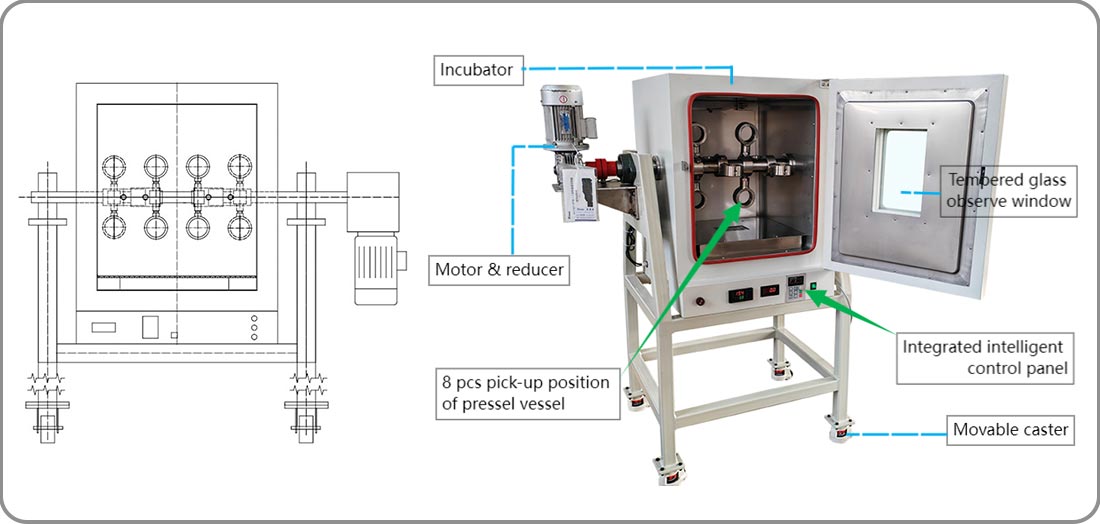

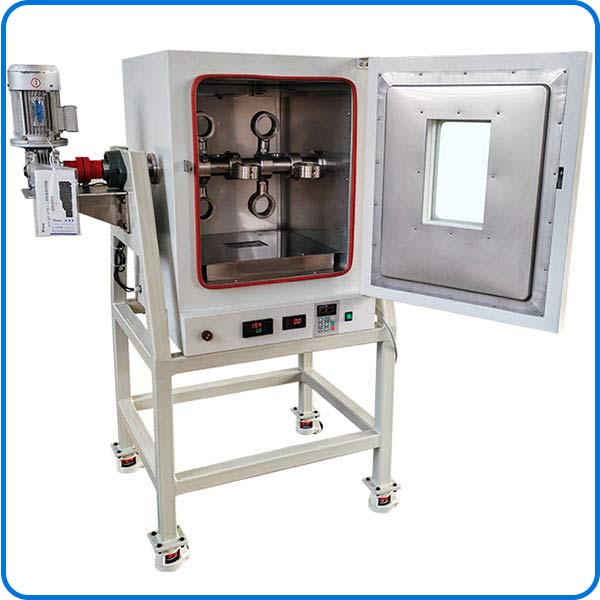

8 rings hydrothermal synthesis reaction rotation machine

No.00380
This fantastic machine was designed and made as per client request of his hydrothermal synthesis reaction application
Description

I Specification

 Design pressure MPa  Design temperature  Motor power  Heating power  Speed rpm
 ATM  300   0.75KW  0.37KW  1~5
 Working pressure MPa  Working temperature  Heating mode  Fixing rings  Design life
 ATM  250  Electric heating  8  10 years

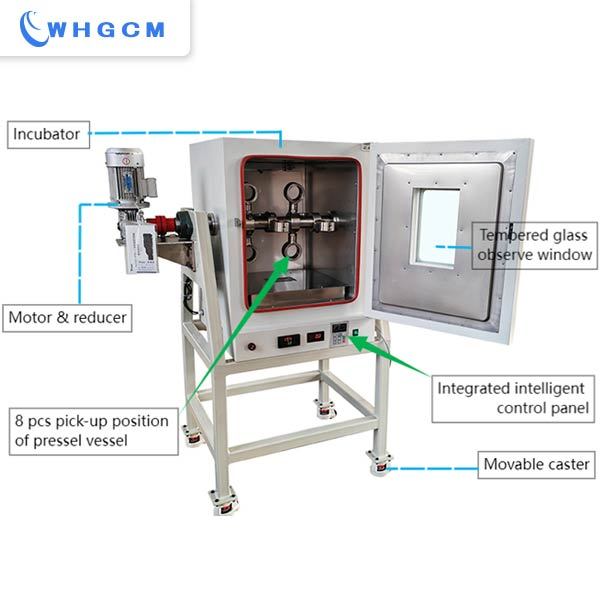

II Configurition

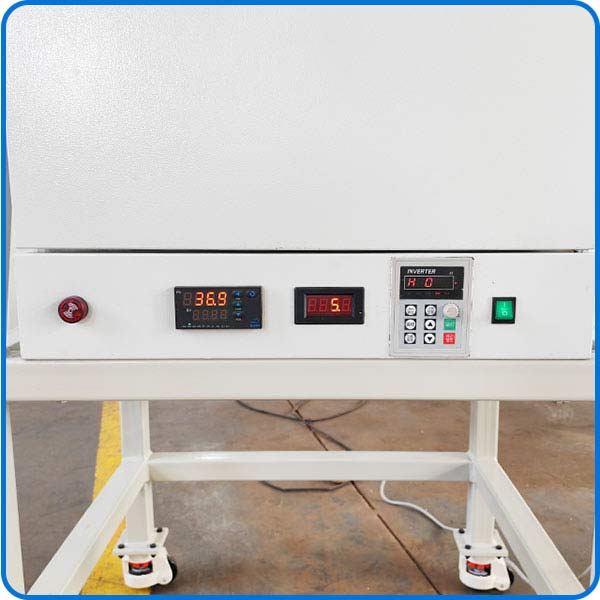

 1, Temperature is controlled Program.
 2, Installed with system of over-temperature power off and alarm indication. The instrument can automatically cut the output power and run buzzer alarm, when the control temperature exceeds the set upper limit.  Ensure the safety of experiments and personnel.
 3, Apply high temperature silicone seals, with locking type elastic adjustment door lock.
 4, Equipped with double-layer tempered glass on the gate.
 5, The shell is treated with electrostatic spraying.
 6, Frequency converter, frequency conversion speed regulation, 1~5r/min controllable.
 7. Can fix 8 pcs of100ml hydrothermal vessels. 10 pcs of fixed top screws as spare parts.
 8, Hydrothermal vessels.
 9. Power supply 220 V.
 10. 1pcs of fork wrench for top screw.
 11. A 304-hole plate is equipped in the oven, which can bear weight and is not deformed when placed in the hydrothermal kettle.
 12. The bracket height is 700 mm.
